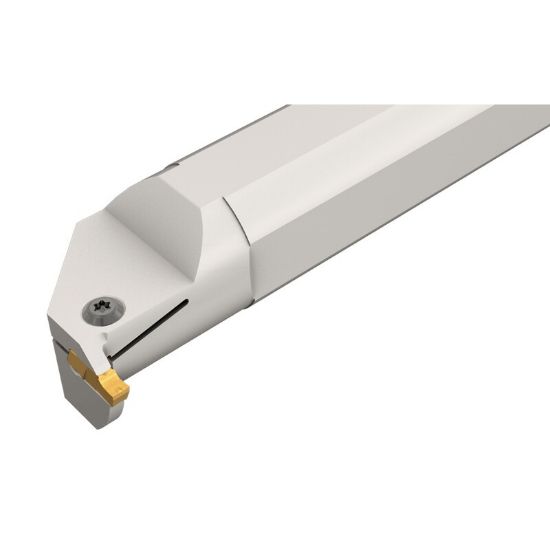

Picture of ISCAR GHIL 31.7-6 Grooving,Groove Turning Boring Bar 1.250 Tool

ISCAR GHIL 31.7-6 Grooving,Groove Turning Boring Bar 1.250 Tool

ANSI: GHIL 31.7-6

ISO: GHIL 31.7-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800309
Delivery date: 3-5 days
$398.40

Important Notes

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Grooving and turning boring bars.

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Grooving
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 10.0000 254.00MM
Insert Size Ic 6
Machine Side Connection Type Boring Bar
Cutting Width 0.1570 3.99MM
Depth Of Cut Max 0.2520
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style GI,GI,GI
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern Internal
