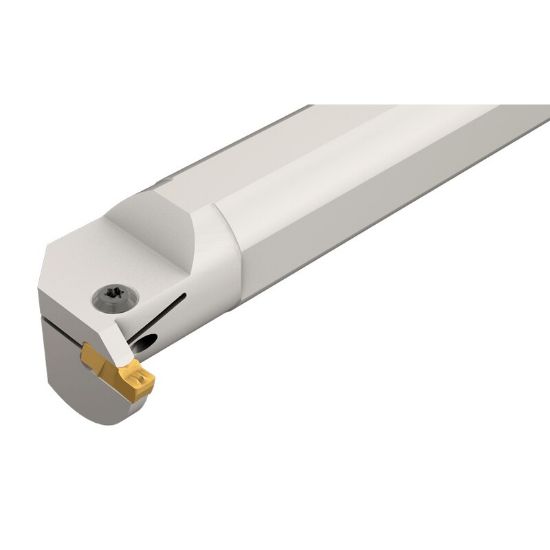

Picture of ISCAR GHIL 25.4C-510 Grooving,Groove Turning Boring Bar 1.000 Tool

ISCAR GHIL 25.4C-510 Grooving,Groove Turning Boring Bar 1.000 Tool

ANSI: GHIL 25.4C-510

ISO: GHIL 25.4C-510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800620
Delivery date: 3-5 days
$358.08

Important Notes

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

Grooving and turning boring bars with coolant holes.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Groove Turning, Int.Grooving
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Overall Len 7.0000 177.80MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Boring Bar
Insert Size Ic 5
Depth Of Cut Max 0.3930
Tool Material Steel
Cutting Width 0.1570 3.99MM
Cutting & Machining Properties
Insert Style GI,GI,GI,GI
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Left
