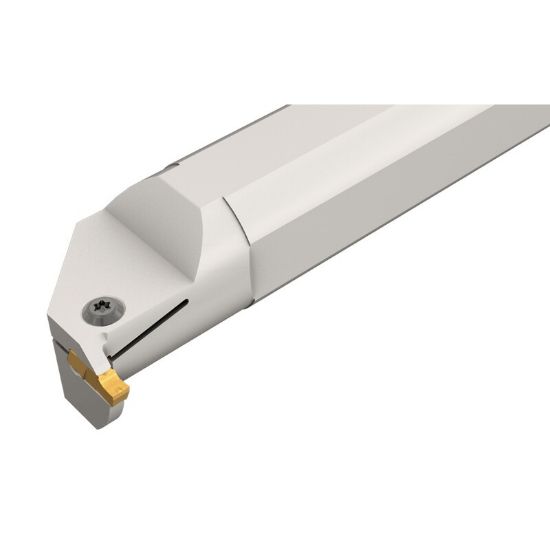

Picture of ISCAR GHIL 25.4-4 Grooving,Groove Turning Boring Bar 1.000 Tool

ISCAR GHIL 25.4-4 Grooving,Groove Turning Boring Bar 1.000 Tool

ANSI: GHIL 25.4-4

ISO: GHIL 25.4-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800300
Delivery date: 3-5 days
$331.20

Important Notes

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Grooving and turning boring bars.

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Texas
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Application Int.Grooving
Dimensional Specifications
Insert Size Ic 4
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 8.0000 203.20MM
Machine Side Connection Type Boring Bar
Cutting Width 0.0980 2.49MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GI
Inter/Extern Internal
