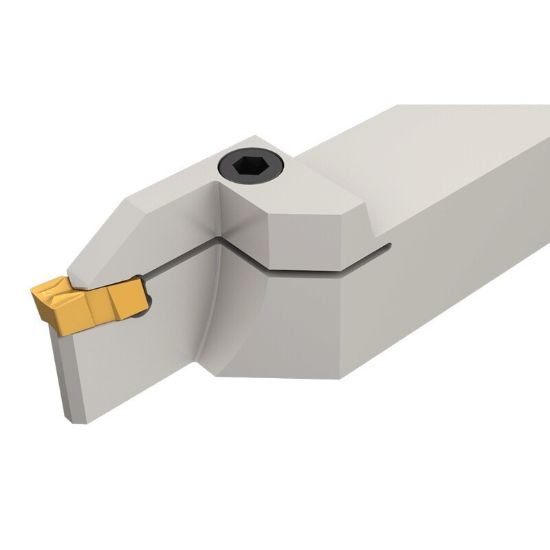

Picture of ISCAR GHGR 31.7-4 Back Turning,Grooving,Groove Turning,Groove Threading Stick Tool 1.250 Tool

ISCAR GHGR 31.7-4 Back Turning,Grooving,Groove Turning,Groove Threading Stick Tool 1.250 Tool

ANSI: GHGR 31.7-4

ISO: GHGR 31.7-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800276
Delivery date: 3-5 days
$200.64

Details

Ext. Back Turning Ext. Grooving Ext. Grooving & Turning Ext. Profiling Parting Threading (Ext.) Groove Turn T

For machining depth over .512", a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter CUTDIA For grooving a part with a diameter larger than CUTDIA, click on "More Info" For using TIP inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional), click on "More Info"More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Ext.Groove Turning, Ext.Threading, Back Turning
Made In USA No
Shipping State Texas
Package Size 1
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 1.0000
Overall Len 7.0000 177.80MM
Insert Size Ic 4
Cutting Width 0.1500 3.81MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
Inter/Extern External
