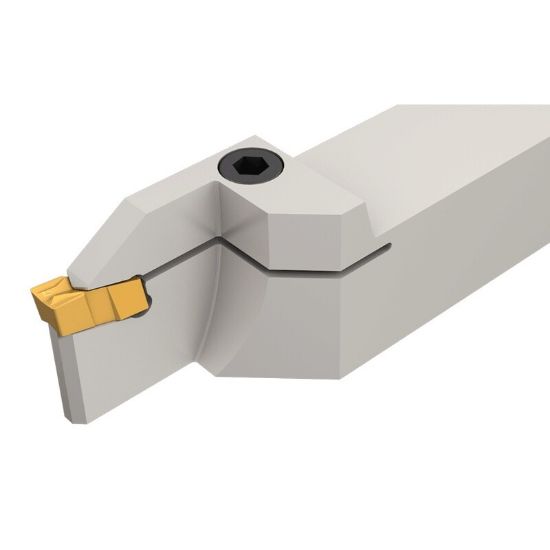

Picture of ISCAR GHGR 25.4-630 Grooving,Groove Turning Stick Tool 1.000 Tool

ISCAR GHGR 25.4-630 Grooving,Groove Turning Stick Tool 1.000 Tool

ANSI: GHGR 25.4-630

ISO: GHGR 25.4-630

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800651
Delivery date: 3-5 days
$181.44

Important Notes

For machining depth over .512", a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter CUTDIA For grooving a part with a diameter larger than CUTDIA. For using TIP inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional).

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Grooving, Ext.Groove Turning
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Depth Of Cut Max 1.1800
Cutting Width 0.2360 5.99MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 6
Cutting & Machining Properties
Inter/Extern External
Insert Style GI,GI,GI,GI,GI
Insert Shape/Cutter Pocket Shape Dog Bone
