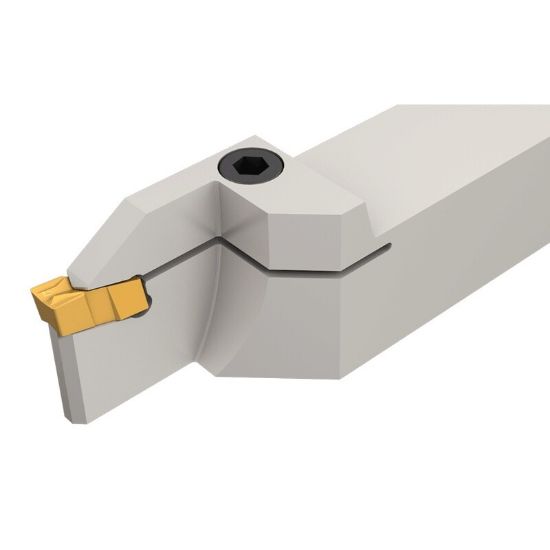

Picture of ISCAR GHGR 25.4-2 Grooving,Groove Turning Stick Tool 1.000 Tool

ISCAR GHGR 25.4-2 Grooving,Groove Turning Stick Tool 1.000 Tool

ANSI: GHGR 25.4-2

ISO: GHGR 25.4-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800606
Delivery date: 3-5 days
$181.44

Details

External holders for deep grooving and parting

For machining depth over .512", a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter CUTDIA For grooving a part with a diameter larger than CUTDIA, click on "More Info" For using TIP inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional), click on "More Info"More Info"

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Groove Turning, Ext.Grooving
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Insert Type Positive
Dimensional Specifications
Cutting Width 0.0160 0.41MM
Insert Size Ic 2
Depth Of Cut Max 0.6700
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Inter/Extern External
Insert Style GI,GI,GI,GI,GP,GI,TI
Insert Shape/Cutter Pocket Shape Dog Bone
