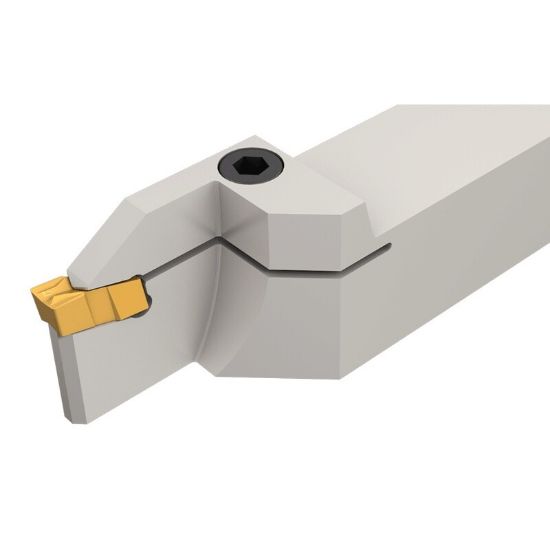

Picture of ISCAR GHGL 25.4-4 Back Turning,Grooving,Groove Turning,Groove Threading Stick Tool 1.000 Tool

ISCAR GHGL 25.4-4 Back Turning,Grooving,Groove Turning,Groove Threading Stick Tool 1.000 Tool

ANSI: GHGL 25.4-4

ISO: GHGL 25.4-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800243
Delivery date: 3-5 days
$181.44

Details

Ext. Back Turning Ext. Grooving Ext. Grooving & Turning Ext. Profiling Parting Threading (Ext.) Groove Turn T

For machining depth over .512", a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter CUTDIA For grooving a part with a diameter larger than CUTDIA, click on "More Info" For using TIP inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional), click on "More Info"More Info"

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading, Ext.Groove Turning, Ext.Grooving, Back Turning
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 4
Cutting Width 0.1500 3.81MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Depth Of Cut Max 0.7900
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
