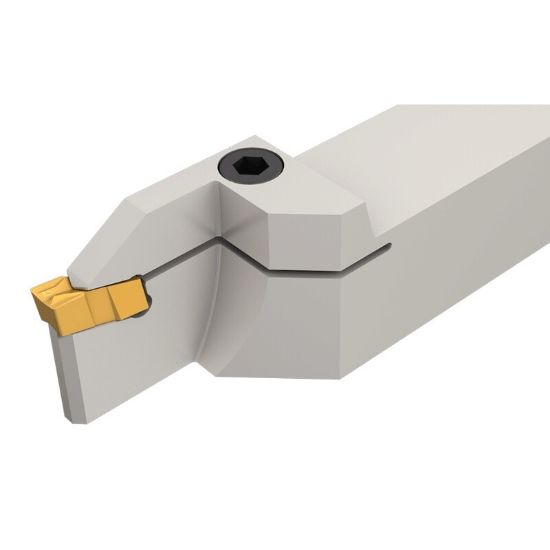

Picture of ISCAR GHGL 19-4 Grooving,Groove Turning Stick Tool 0.750 Tool

ISCAR GHGL 19-4 Grooving,Groove Turning Stick Tool 0.750 Tool

ANSI: GHGL 19-4

ISO: GHGL 19-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2861193
Delivery date: 3-5 days
$171.84

Important Notes

For machining depth over .512", a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter CUTDIA For grooving a part with a diameter larger than CUTDIA. For using TIP inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional).

Details

External holders for deep grooving and parting

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Texas
Application Ext.Groove Turning, Ext.Grooving
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 4, 5
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.7900
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
Inter/Extern External
