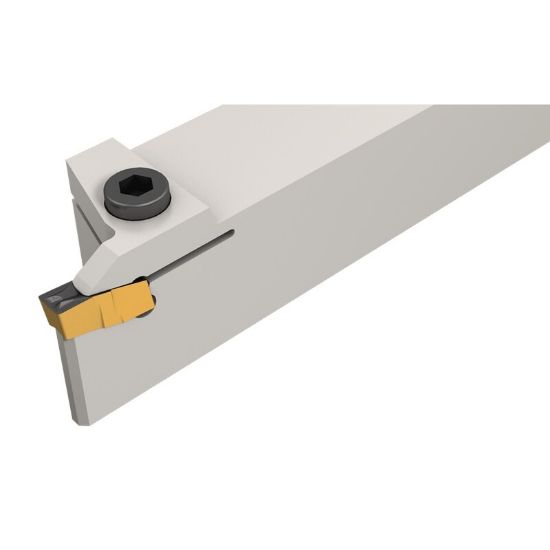

Picture of ISCAR GHDR 31.7-5 Cut Off,Grooving Stick Tool 1.250 Tool

ISCAR GHDR 31.7-5 Cut Off,Grooving Stick Tool 1.250 Tool

ANSI: GHDR 31.7-5

ISO: GHDR 31.7-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800745
Delivery date: 3-5 days
$200.64

Important Notes

For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Details

External tools for turning, grooving and parting.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Grooving, Parting, Pulley Groove, Ext.Groove Turning
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Overall Len 7.0000 177.80MM
Insert Size Ic 5
Depth Of Cut Max 0.5000
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Cutting Width 0.2000 5.08MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GI,GI
