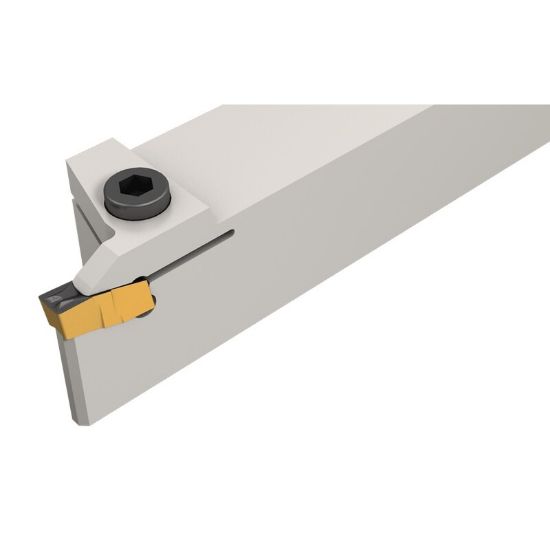

Picture of ISCAR GHDR 31.7-3 Grooving,Groove Turning,Groove Threading,Pully V Groove Stick Tool 1.250 Tool

ISCAR GHDR 31.7-3 Grooving,Groove Turning,Groove Threading,Pully V Groove Stick Tool 1.250 Tool

ANSI: GHDR 31.7-3

ISO: GHDR 31.7-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800171
Delivery date: 3-5 days
$200.64

Details

Ext. Grooving Ext. Grooving & Turning Ext. Profiling Parting Pulley V Grooving Threading (Ext.) Groove Turn T

For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Application Pulley V, Ext.Groove Turning, Ext.Threading, Ext.Grooving
Made In USA No
Insert Application General Purpose
Insert Type Positive
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 3
Cutting Width 0.1100 2.79MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.3600
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
Inter/Extern External
