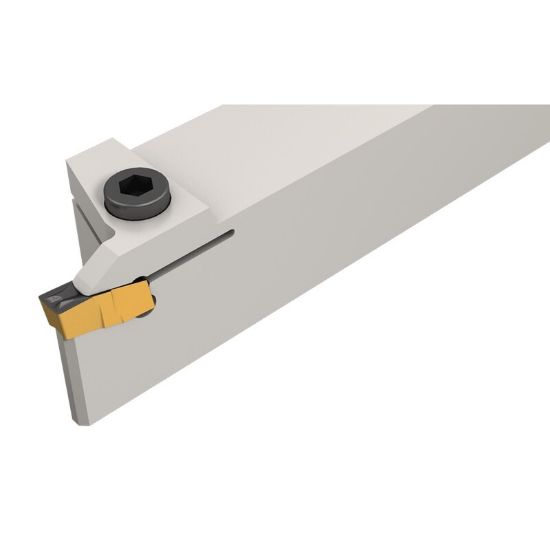

Picture of ISCAR GHDL 31.7-3 Cut Off,Grooving,Groove Turning,Polley V Grooving Stick Tool 1.250 Tool

ISCAR GHDL 31.7-3 Cut Off,Grooving,Groove Turning,Polley V Grooving Stick Tool 1.250 Tool

ANSI: GHDL 31.7-3

ISO: GHDL 31.7-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2861217
Delivery date: 3-5 days
$200.64

Important Notes

For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Details

External tools for turning, grooving and parting.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Turning, Ext.Grooving, Parting
Insert/Tool Tool
Package Size 1
Made In USA No
Insert Type Positive
Insert Application General Purpose
Shipping State Texas
Dimensional Specifications
Cutting Width 0.1100 2.79MM
Overall Len 7.0000 177.80MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 3, 4
Depth Of Cut Max 0.3600
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
