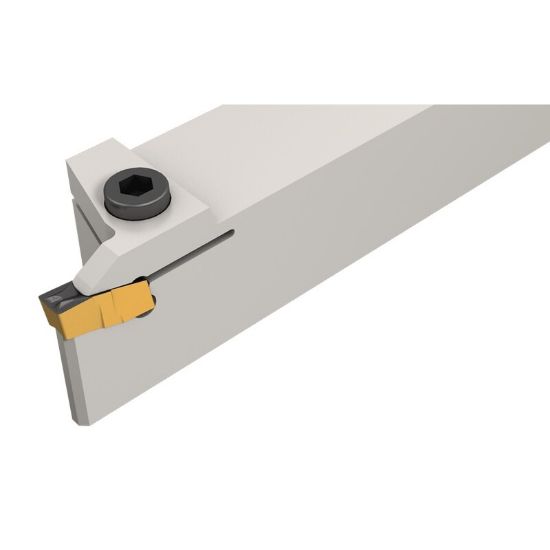

Picture of ISCAR GHDL 19-5 Grooving,Groove Turning Stick Tool 0.750 Tool

ISCAR GHDL 19-5 Grooving,Groove Turning Stick Tool 0.750 Tool

ANSI: GHDL 19-5

ISO: GHDL 19-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800738
Delivery date: 3-5 days
$171.84

Important Notes

For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional).

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Ext.Groove Turning, Ext.Grooving
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutting Width 0.2000 5.08MM
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 5
Depth Of Cut Max 0.5000
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style GI,GI,GI,GI,GI
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern External
