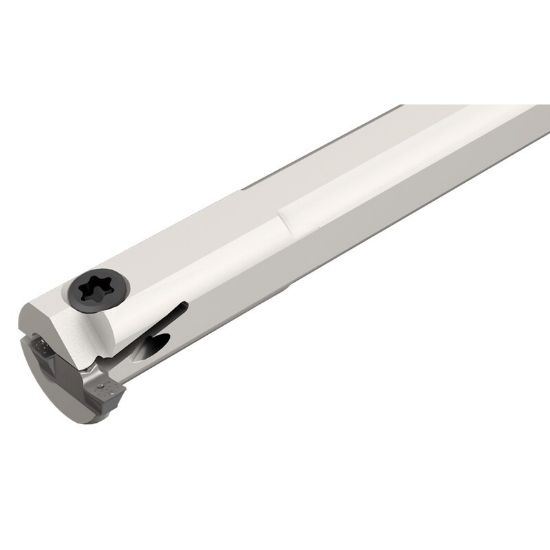

Picture of ISCAR GEHIR 15.9-11.5-3-T3 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ISCAR GEHIR 15.9-11.5-3-T3 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ANSI: GEHIR 15.9-11.5-3-T3

ISO: GEHIR 15.9-11.5-3-T3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801773
Delivery date: 3-5 days
$238.08

Details

Int. Groove & Turn Int. Grooving Int. Profiling Threading (Int.)

Internal machining bars with a coolant holes using GEMI and GEPI inserts in widths larger than .075".

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Texas
Package Size 1
Application Int.Groove Turning, Int.Threading, Int.Grooving
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 3
Cutting Width 0.0950 2.41MM
Overall Len 5.0000 127.00MM
Depth Of Cut Max 0.1180
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Style GE,GE
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
