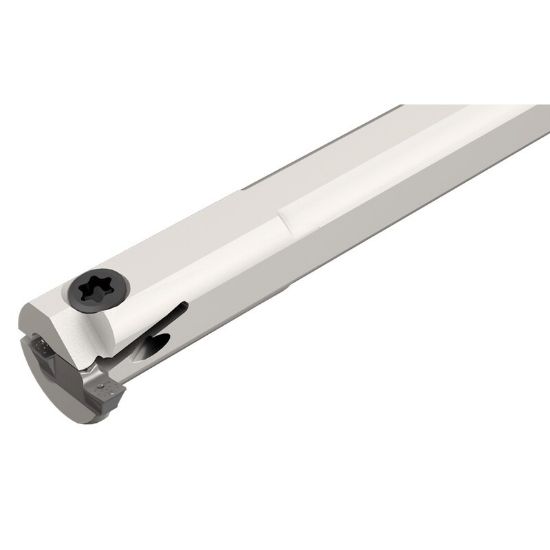

Picture of ISCAR GEHIL 15.9-20-3-T8 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ISCAR GEHIL 15.9-20-3-T8 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ANSI: GEHIL 15.9-20-3-T8

ISO: GEHIL 15.9-20-3-T8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801784
Delivery date: 3-5 days
$238.08

Details

Int. Groove & Turn Int. Grooving Int. Profiling Threading (Int.)

Internal machining bars with a coolant holes using GEMI and GEPI inserts in widths larger than .075".

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Groove Turning, Int.Threading, Int.Grooving
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Texas
Dimensional Specifications
Overall Len 6.0000 152.40MM
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 3
Cutting Width 0.0950 2.41MM
Depth Of Cut Max 0.3150
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Inter/Extern Internal
Insert Style GE,GE
Hand R/L Left
