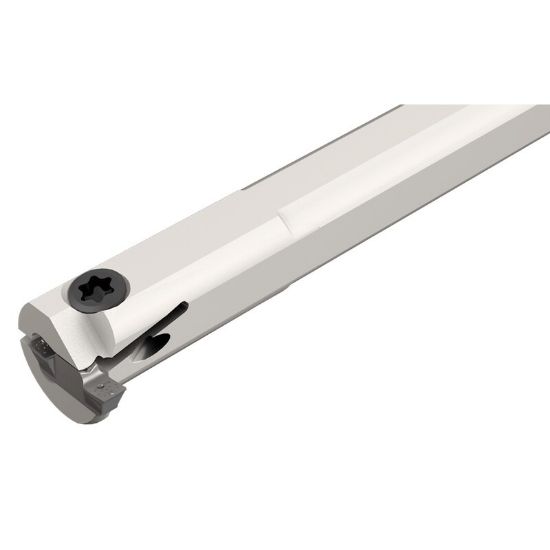

Picture of ISCAR GEHIL 15.9-13-3-T2.4 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ISCAR GEHIL 15.9-13-3-T2.4 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ANSI: GEHIL 15.9-13-3-T2.4

ISO: GEHIL 15.9-13-3-T2.4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801053
Delivery date: 3-5 days
$238.08

Details

Internal machining bars with a coolant holes using GEMI and GEPI inserts in widths larger than .075".

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning, Int.Threading
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Cutting Width 0.0950 2.41MM
Machine Side Connection Type Boring Bar
Insert Size Ic 2.4
Overall Len 5.0000 127.00MM
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.0940
Cutting & Machining Properties
Insert Style GE,GE
Hand R/L Left
Insert Shape/Cutter Pocket Shape Other
Inter/Extern Internal
