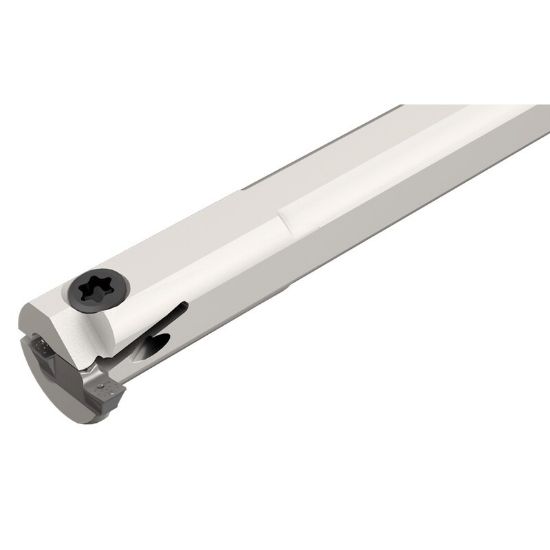

Picture of ISCAR GEHIL 15.9-13-2-T2.4 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ISCAR GEHIL 15.9-13-2-T2.4 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ANSI: GEHIL 15.9-13-2-T2.4

ISO: GEHIL 15.9-13-2-T2.4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801144
Delivery date: 3-5 days
$238.08

Details

Int. Groove & Turn Int. Grooving Int. Profiling Threading (Int.)

Internal machining bars with a coolant holes using GEMI and GEPI inserts in widths larger than .075".

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Int.Groove Turning, Int.Threading, Int.Grooving
Insert Type Positive
Insert/Tool Tool
Package Size 1
Shipping State Texas
Insert Application General Purpose
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 2.4
Cutting Width 0.0750 1.91MM
Depth Of Cut Max 0.0940
Overall Len 5.0000 127.00MM
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Style GE,GE
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Other
Hand R/L Left
