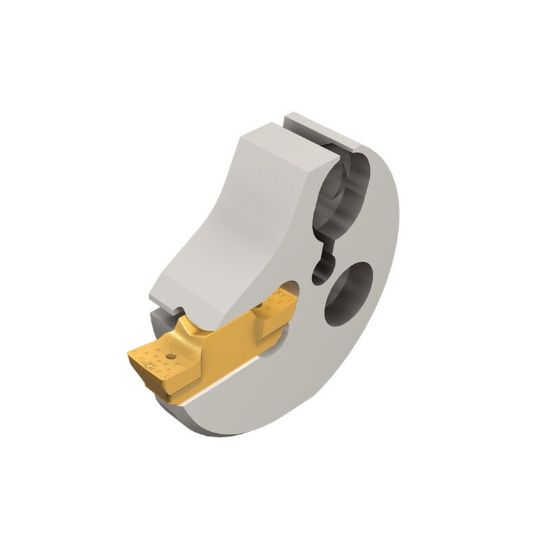

Picture of ISCAR GEAIL 20-3 Grooving,Groove Turning Adapter Blade Tool

ISCAR GEAIL 20-3 Grooving,Groove Turning Adapter Blade Tool

ANSI: GEAIL 20-3

ISO: GEAIL 20-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801013
Delivery date: 3-5 days
$128.64

Details

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Grooving
Insert Type Positive
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Insert Size Ic 3
Cutting Width 0.0940 2.39MM
Depth Of Cut Max 0.1180
Machine Side Connection Type Modular
Cutting & Machining Properties
Hand R/L Left
Insert Style GE
Insert Shape/Cutter Pocket Shape Other
