  • ISCAR GD-DH 1.062-15D-I1.5-12 1.062" GunDrill s Carrying Triangular Inserts Featuring 3 Chip Splitting Cutting Edges and a Wiper for High Hole Surface Quality

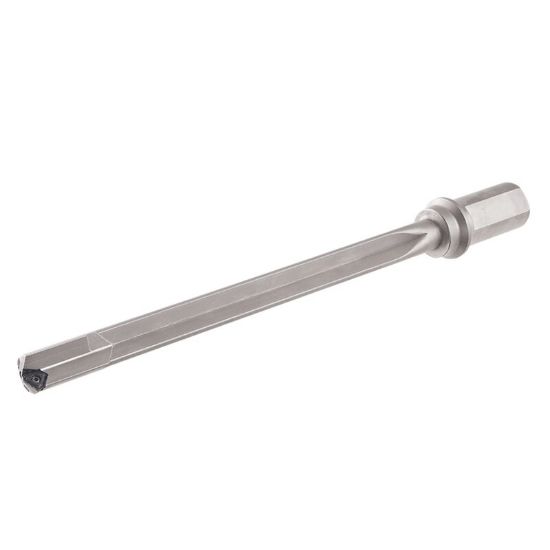

Picture of ISCAR GD-DH 1.062-15D-I1.5-12 1.062" GunDrill s Carrying Triangular Inserts Featuring 3 Chip Splitting Cutting Edges and a Wiper for High Hole Surface Quality

ISCAR GD-DH 1.062-15D-I1.5-12 1.062" GunDrill s Carrying Triangular Inserts Featuring 3 Chip Splitting Cutting Edges and a Wiper for High Hole Surface Quality

ISO: GD-DH 1.062-15D-I1.5-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4851691
Delivery date: 3-5 days
$901.33

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA No
Package Size 1
Application Deep Hole Drilling, Gun Drilling
Dimensional Specifications
Tool Material Steel
Cutter Dia 1.0620 26.97MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 1
Cut Dia Min 1.0156 25.79MM - 1-1/64
Machine Side Connection Type Boring Bar,Weldon
Flute Length 16.5400 420.12MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 21.6020 548.69MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
