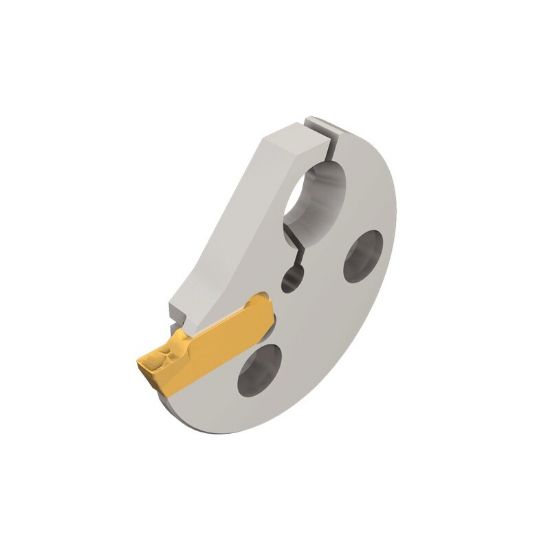

Picture of ISCAR GAIR 32-4 Grooving,Groove Turning,Groove Threading Adapter Blade Tool

ISCAR GAIR 32-4 Grooving,Groove Turning,Groove Threading Adapter Blade Tool

ANSI: GAIR 32-4

ISO: GAIR 32-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801096
Delivery date: 3-5 days
$131.52

Important Notes

When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Int. Groove & Turn Int. Grooving Int. Grooving (side limit) Int. Profiling Threading (Int.)

Internal grooving and turning adapters for GIPI, GIFI and GIMIY inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Threading, Int.Grooving, Int.Groove Turning
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Cutting Width 0.1180 3.00MM
Insert Size Ic 4
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side Connection Type Modular
Cutting & Machining Properties
Hand R/L Right
Insert Style GI,GI,GI,GI
Insert Shape/Cutter Pocket Shape Dog Bone
