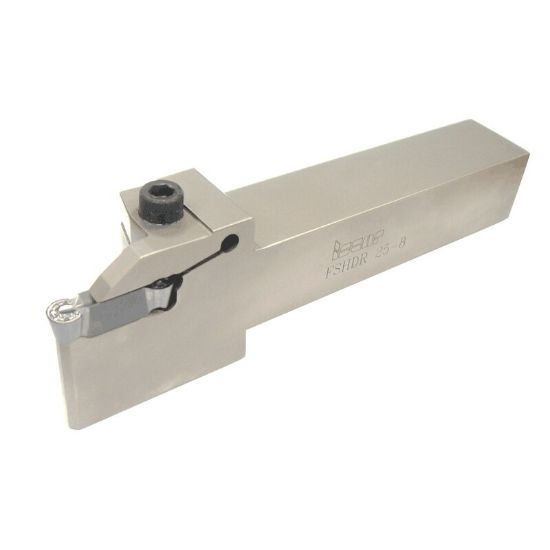

Picture of ISCAR FSHDR 25.4-8 Face Grooving Stick Tool 1.000 Tool

ISCAR FSHDR 25.4-8 Face Grooving Stick Tool 1.000 Tool

ISO: FSHDR 25.4-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801751
Delivery date: 3-5 days
$209.28

Important Notes

Clamping torque for FSHDR..-6: 66 lbfxin, for FSHDR..-8: 88 lbfxin

Details

Tools with a very strong insert grip, for interrupted cuts and back turning of aluminum wheels.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 8
Tool Material Steel
Machine Side Connection Type Stick Tool
Depth Of Cut Max 1.0040
Overall Len 6.7000 170.18MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style FG
Inter/Extern External
