  • ISCAR FRW D321A400-6-1.50-20 Milling Cutter Button Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

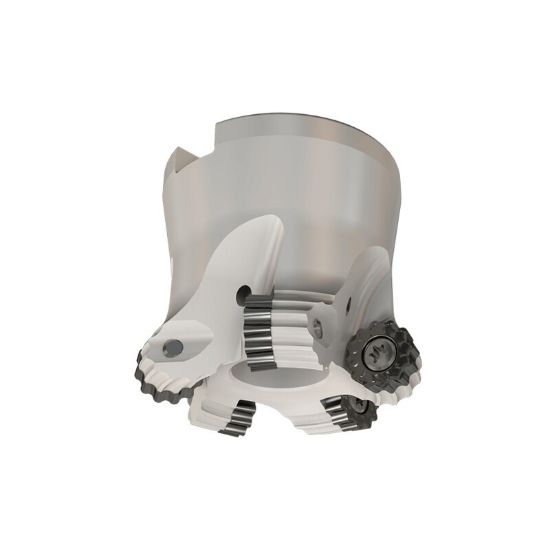

Picture of ISCAR FRW D321A400-6-1.50-20 Milling Cutter Button Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ISCAR FRW D321A400-6-1.50-20 Milling Cutter Button Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ANSI: FRW D321A400-6-1.50-20

ISO: FRW D321A400-6-1.50-20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104135
Delivery date: 3-5 days
$1,065.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Face Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Cut Dia Min 3.2100 81.53MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 20
Depth Of Cut Max 0.2760
Tool Material Steel
Flutes/Inserts 6
Cutting & Machining Properties
Coolant Thru No
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7003603
