  • ISCAR FRW D153A200-5-.75-12 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

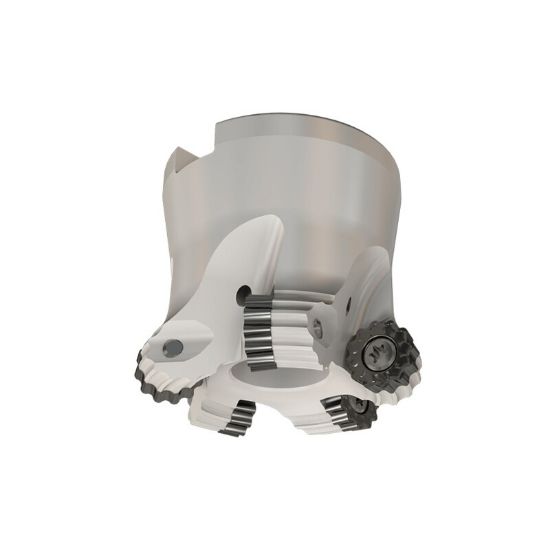

Picture of ISCAR FRW D153A200-5-.75-12 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

ISCAR FRW D153A200-5-.75-12 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

ANSI: FRW D153A200-5-.75-12

ISO: FRW D153A200-5-.75-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104517
Delivery date: 3-5 days
$709.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2360
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cutter Dia 2.0000 50.80MM
Insert Size Ic 12
Cut Dia Min 1.5300 38.86MM
Overall Len 1.7500 44.45MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RC
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7001990
