  • ISCAR FRW D137A200-4-.75-16 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 4 Flute

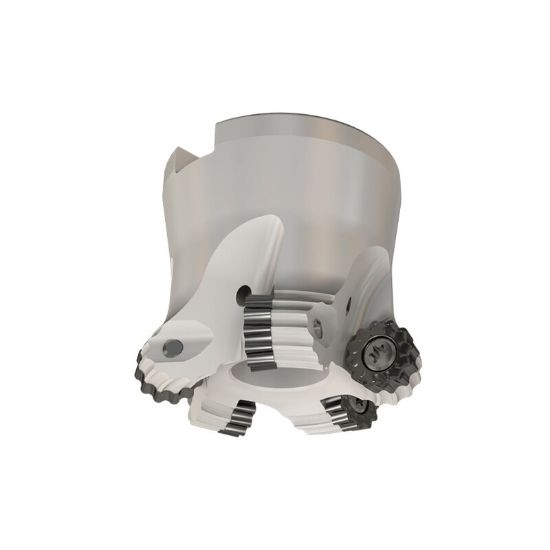

Picture of ISCAR FRW D137A200-4-.75-16 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 4 Flute

ISCAR FRW D137A200-4-.75-16 Milling Cutter Button Cutter 2.000 Diameter Face Mill 0.750 2.000 OAL 4 Flute

ANSI: FRW D137A200-4-.75-16

ISO: FRW D137A200-4-.75-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103460
Delivery date: 3-5 days
$635.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 1.3700 34.80MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.3150
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style RC
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002000
