  • ISCAR FRW D103A150-4-.5-12 Milling Cutter Button Cutter 1.030 Diameter Face Mill 0.500 1.400 OAL 4 Flute

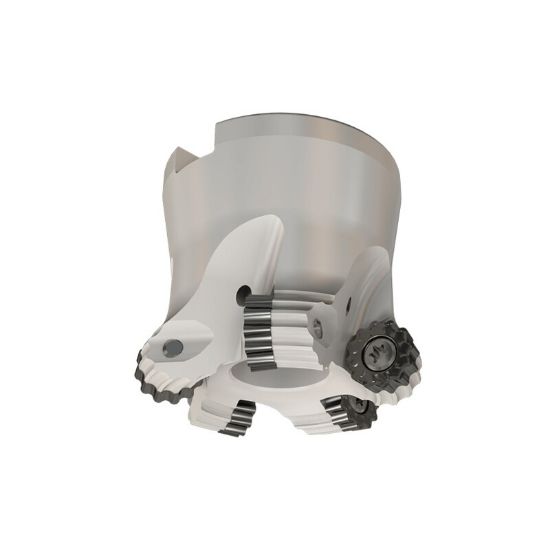

Picture of ISCAR FRW D103A150-4-.5-12 Milling Cutter Button Cutter 1.030 Diameter Face Mill 0.500 1.400 OAL 4 Flute

ISCAR FRW D103A150-4-.5-12 Milling Cutter Button Cutter 1.030 Diameter Face Mill 0.500 1.400 OAL 4 Flute

ANSI: FRW D103A150-4-.5-12

ISO: FRW D103A150-4-.5-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3197235
Delivery date: 3-5 days
$559.68

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Face Milling, Ramp Milling, Pocket Milling, Round Milling
Package Size 1
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 1.0300 26.16MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2360
Machine Side Connection Size 0.5000 12.70MM
Tool Material Steel
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.4000 35.56MM
Flutes/Inserts 4
Cutter Dia 1.0300 26.16MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style RC
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7000212
