  • ISCAR FRW D060A080-05-25.4-20 Milling Cutter Button Cutter 3.150 Diameter Face Mill 1.000 1.968 OAL 5 Flute

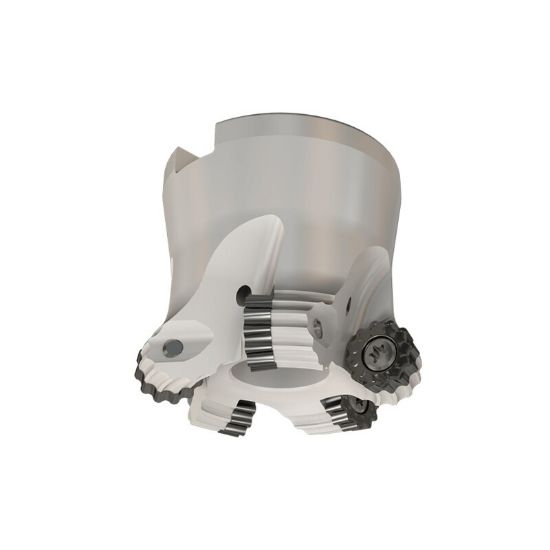

Picture of ISCAR FRW D060A080-05-25.4-20 Milling Cutter Button Cutter 3.150 Diameter Face Mill 1.000 1.968 OAL 5 Flute

ISCAR FRW D060A080-05-25.4-20 Milling Cutter Button Cutter 3.150 Diameter Face Mill 1.000 1.968 OAL 5 Flute

ANSI: FRW D060A080-05-25.4-20

ISO: FRW D060A080-05-25.4-20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104129
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Ramp Milling, Pocket Milling
Shipping State Texas
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2760
Tool Material Steel
Overall Len 1.9680 49.99MM
Flutes/Inserts 5
Cut Dia Min 2.3620 59.99MM
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.1500 80.01MM
Insert Size Ic 20
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style RC
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7002851
