  • ISCAR FRW D030A040-05-16-10 Milling Cutter Button Cutter 1.575 Diameter Face Mill 0.629 1.378 OAL 5 Flute

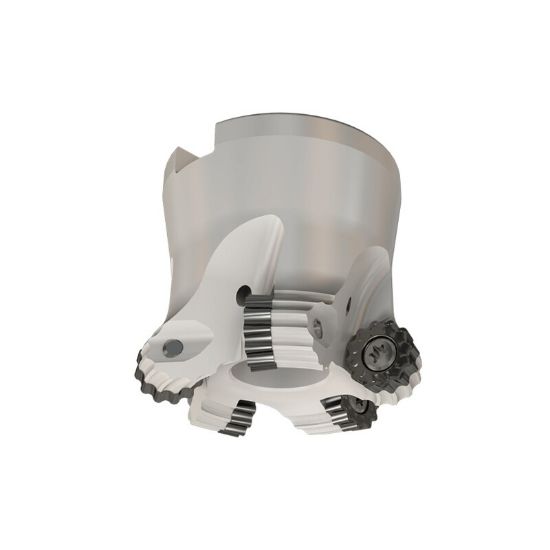

Picture of ISCAR FRW D030A040-05-16-10 Milling Cutter Button Cutter 1.575 Diameter Face Mill 0.629 1.378 OAL 5 Flute

ISCAR FRW D030A040-05-16-10 Milling Cutter Button Cutter 1.575 Diameter Face Mill 0.629 1.378 OAL 5 Flute

ANSI: FRW D030A040-05-16-10

ISO: FRW D030A040-05-16-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106285
Delivery date: 3-5 days
$598.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Round Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Depth Of Cut Max 0.1970
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Overall Len 1.3780 35.00MM
Flutes/Inserts 5
Cut Dia Max 1.5750 40.01MM
Cut Dia Min 1.1810 30.00MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 10
Cutting & Machining Properties
Insert Style RC
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7006316
