  • ISCAR FR D237A300-6-1.00-16 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

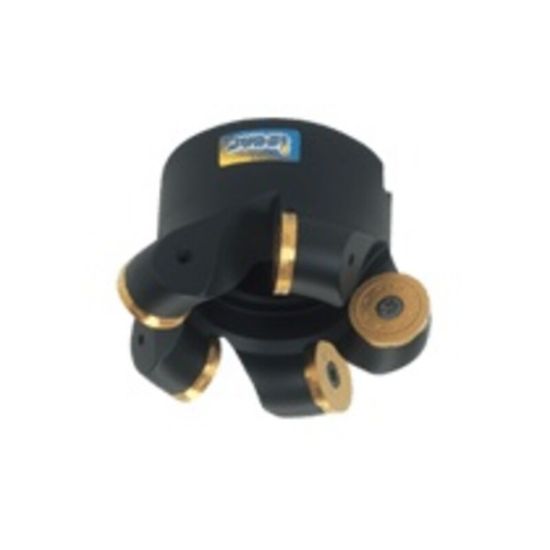

Picture of ISCAR FR D237A300-6-1.00-16 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR FR D237A300-6-1.00-16 Milling Cutter Button Cutter 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: FR D237A300-6-1.00-16

ISO: FR D237A300-6-1.00-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102959
Delivery date: 3-5 days
$839.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Flutes/Inserts 6
Cut Dia Min 2.3700 60.20MM
Insert Size Ic 16
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Cool Sply Type External
Coolant Thru No
Insert Style RC
Fasteners & Connectors
Insert Screw 7000212
