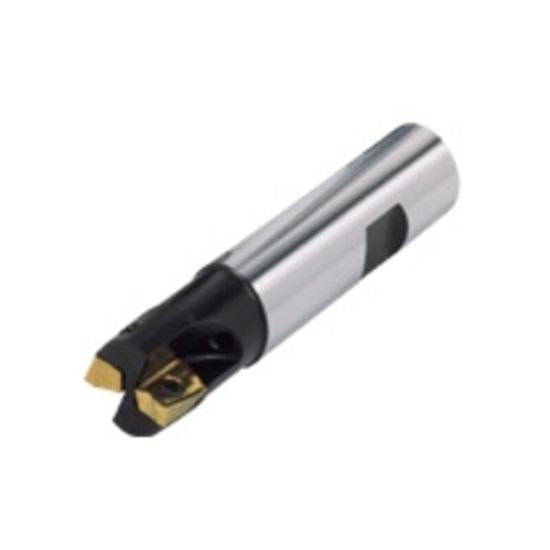

Picture of ISCAR FHM90 E90A-D.62-2-W.62 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 3.250 OAL 2 Flute

ISCAR FHM90 E90A-D.62-2-W.62 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 3.250 OAL 2 Flute

ANSI: FHM90 E90A-D.62-2-W.62

ISO: FHM90 E90A-D.62-2-W.62

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3331074
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3940
Cut Dia Min 0.6250 15.88MM - 5/8
Insert Size Ic 10
Cut Dia Max 0.6250 15.88MM - 5/8
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Overall Len 3.2500 82.55MM
Flutes/Inserts 2
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Max Ramp Angle 15.00°
Insert Style AP
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002441
