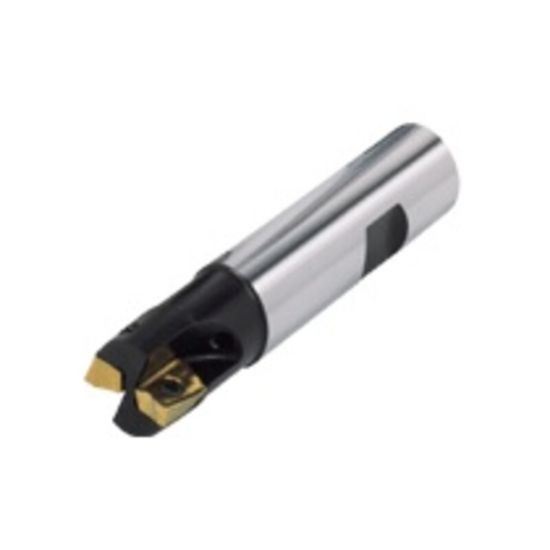

Picture of ISCAR FHM90 E90A-D1.00-4-W.75 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

ISCAR FHM90 E90A-D1.00-4-W.75 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.380 OAL 4 Flute

ANSI: FHM90 E90A-D1.00-4-W.75

ISO: FHM90 E90A-D1.00-4-W.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3331077
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Insert Size Ic 10
Overall Len 3.3800 85.85MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3940
Cut Dia Max 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 2.50°
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AP
Fasteners & Connectors
Insert Screw 7002441
