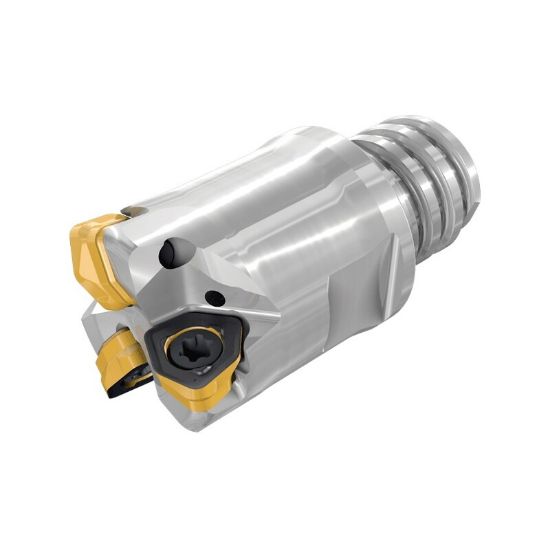

Picture of ISCAR FFT3 EFMD10/.39-2MMT06-03 Milling Cutter 0.394 Diameter Screw On T06 0.642 OAL 2 Flute

ISCAR FFT3 EFMD10/.39-2MMT06-03 Milling Cutter 0.394 Diameter Screw On T06 0.642 OAL 2 Flute

ANSI: FFT3 EFMD10/.39-2MMT06-03

ISO: FFT3 EFMD10/.39-2MMT06-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3346811
Delivery date: 3-5 days
$299.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Face Milling, Slot Milling
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 0.3940 10.01MM
Machine Side Connection Type Screw On
Overall Len 0.6420 16.31MM
Cut Dia Min 0.2200 5.59MM
Tool Material Steel
Depth Of Cut Max 0.0240
Insert Size Ic 3
Flutes/Inserts 2
Cut Dia Max 0.3940 10.01MM
Machine Side Connection Size T06
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Max Ramp Angle 6.90°
Insert Style FF
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 3348063
