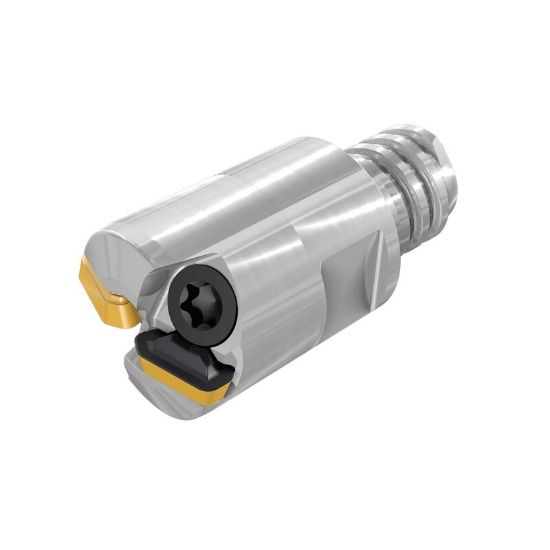

Picture of ISCAR FFT3 EFMD08/.31-2MMT05-02 Milling Cutter 0.315 Diameter Screw On T05 0.659 OAL 2 Flute

ISCAR FFT3 EFMD08/.31-2MMT05-02 Milling Cutter 0.315 Diameter Screw On T05 0.659 OAL 2 Flute

ANSI: FFT3 EFMD08/.31-2MMT05-02

ISO: FFT3 EFMD08/.31-2MMT05-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3346809
Delivery date: 3-5 days
$290.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Insert Application General Purpose
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 0.3150 8.00MM
Machine Side Connection Size T05
Flutes/Inserts 2
Depth Of Cut Max 0.0240
Machine Side Connection Type Screw On
Overall Len 0.6590 16.74MM
Insert Size Ic 2
Cut Dia Max 0.3150 8.00MM
Tool Material Steel
Cut Dia Min 0.0870 2.21MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Max Ramp Angle 10.80°
Coolant Thru Yes
Insert Style FF
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 3348063
