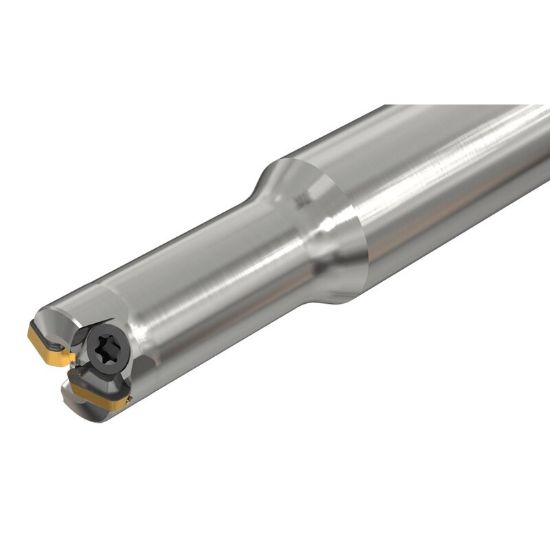

Picture of ISCAR FFT3 EFM D08-2-060-C10-02 Milling Cutter 0.315 Diameter Round 0.393 2.362 OAL 2 Flute

ISCAR FFT3 EFM D08-2-060-C10-02 Milling Cutter 0.315 Diameter Round 0.393 2.362 OAL 2 Flute

ANSI: FFT3 EFM D08-2-060-C10-02

ISO: FFT3 EFM D08-2-060-C10-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3334291
Delivery date: 3-5 days
$277.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.0310
Insert Size Ic 2
Cut Dia Max 0.3150 8.00MM
Tool Material Steel
Machine Side Connection Size 0.3937 10.00MM
Cut Dia Min 0.0870 2.21MM
Shank/Pilot Dia 0.3937 10.00MM
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Overall Len 2.3620 59.99MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style FF
Max Ramp Angle 10.80°
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006316
