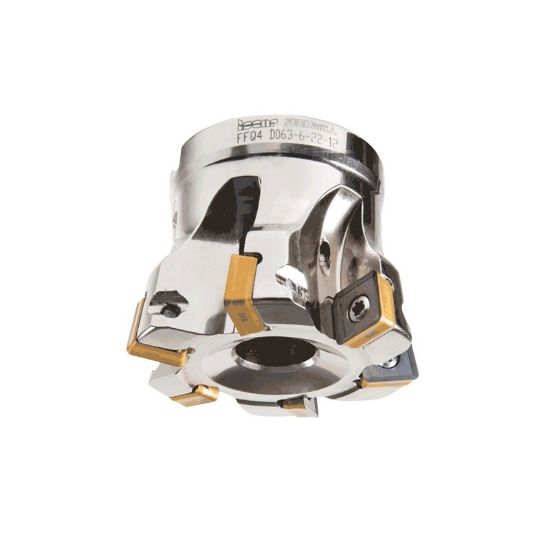

Picture of ISCAR FFQ4 D4.0-8-1.50-12 Milling Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ISCAR FFQ4 D4.0-8-1.50-12 Milling Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ANSI: FFQ4 D4.0-8-1.50-12

ISO: FFQ4 D4.0-8-1.50-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107344
Delivery date: 3-5 days
$1,084.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Type Positive
Insert Application General Purpose
Shipping State Texas
Dimensional Specifications
Flutes/Inserts 8
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.2200
Cutter Dia 4.0000 101.60MM
Insert Size Ic 12
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.1360 79.65MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style FF
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 7000213
