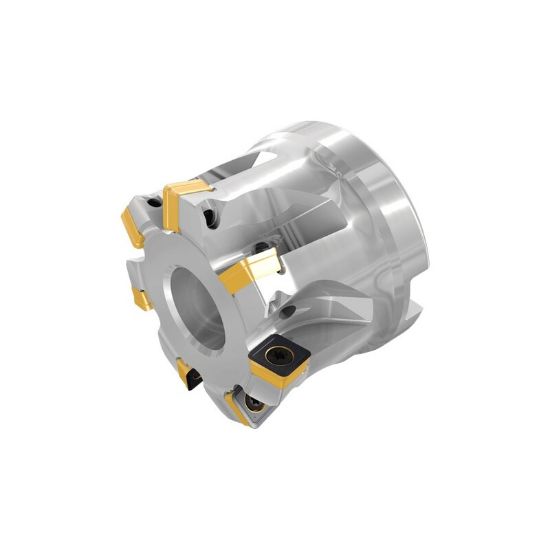

Picture of ISCAR FFQ4 D2.50-08-1.00-09 Milling Cutter 2.500 Diameter Face Mill 1.000 1.850 OAL 8 Flute

ISCAR FFQ4 D2.50-08-1.00-09 Milling Cutter 2.500 Diameter Face Mill 1.000 1.850 OAL 8 Flute

ANSI: FFQ4 D2.50-08-1.00-09

ISO: FFQ4 D2.50-08-1.00-09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3323487
Delivery date: 3-5 days
$849.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Copy Milling, Feed Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 9
Depth Of Cut Max 0.1180
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Flutes/Inserts 8
Overall Len 1.8500 46.99MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Insert Style FF
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006979
