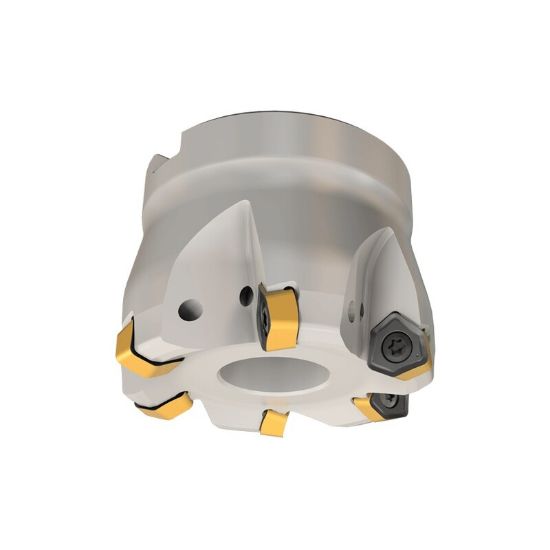

Picture of ISCAR FF FWX D6.00-10-2.00-08 Milling Cutter 6.000 Diameter Face Mill 2.000 2.250 OAL 10 Flute

ISCAR FF FWX D6.00-10-2.00-08 Milling Cutter 6.000 Diameter Face Mill 2.000 2.250 OAL 10 Flute

ANSI: FF FWX D6.00-10-2.00-08

ISO: FF FWX D6.00-10-2.00-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3195933
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 10
Cut Dia Min 5.3700 136.40MM
Cutter Dia 6.0000 152.40MM
Cut Dia Max 6.0000 152.40MM
Overall Len 2.2500 57.15MM
Insert Size Ic 8
Depth Of Cut Max 0.1140
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru No
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Trigon
Insert Style H
Fasteners & Connectors
Insert Screw 7004916
