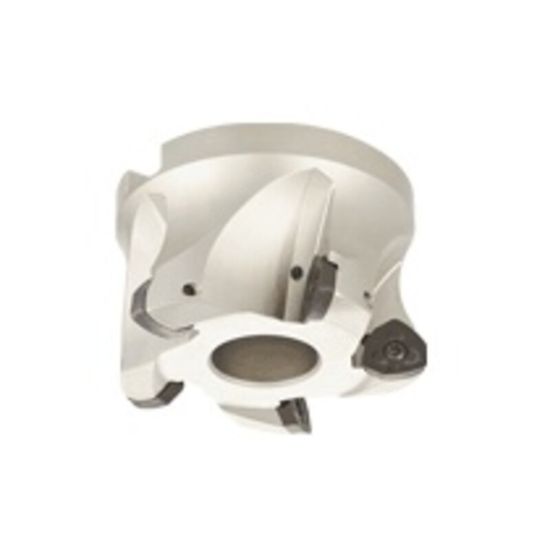

Picture of ISCAR FF FW D3.00-1.25-09-C Milling Cutter 3.000 Diameter Face Mill 1.250 1.750 OAL 5 Flute

ISCAR FF FW D3.00-1.25-09-C Milling Cutter 3.000 Diameter Face Mill 1.250 1.750 OAL 5 Flute

ANSI: FF FW D3.00-1.25-09-C

ISO: FF FW D3.00-1.25-09-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103423
Delivery date: 3-5 days
$843.84

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Insert Type Positive
Dimensional Specifications
Insert Size Ic 9
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 1.7500 44.45MM
Cut Dia Min 2.1800 55.37MM
Cut Dia Max 3.0000 76.20MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.4000
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style FF
Fasteners & Connectors
Insert Screw 7004234
