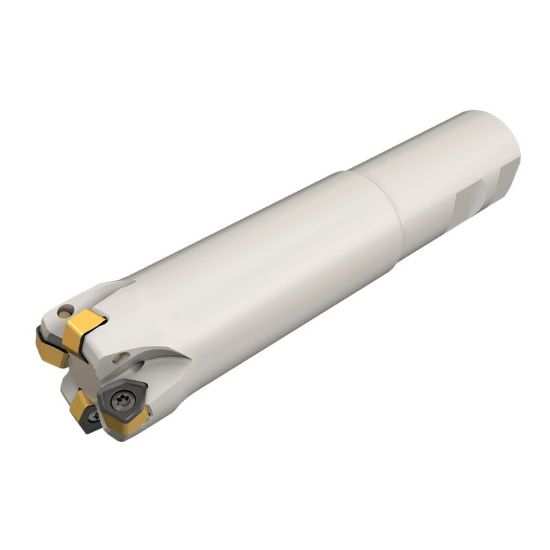

Picture of ISCAR FF EWXD1.50-5-2.5W1.25-05 Milling Cutter 1.500 Diameter Weldon 1.250 4.950 OAL 5 Flute

ISCAR FF EWXD1.50-5-2.5W1.25-05 Milling Cutter 1.500 Diameter Weldon 1.250 4.950 OAL 5 Flute

ANSI: FF EWXD1.50-5-2.5W1.25-05

ISO: FF EWXD1.50-5-2.5W1.25-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105553
Delivery date: 3-5 days
$526.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Insert Type Negative
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.1100 28.19MM
Overall Len 4.9500 125.73MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.0430
Flutes/Inserts 5
Cutting & Machining Properties
Max Ramp Angle 3.00°
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Trigon
Insert Style H
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006042
