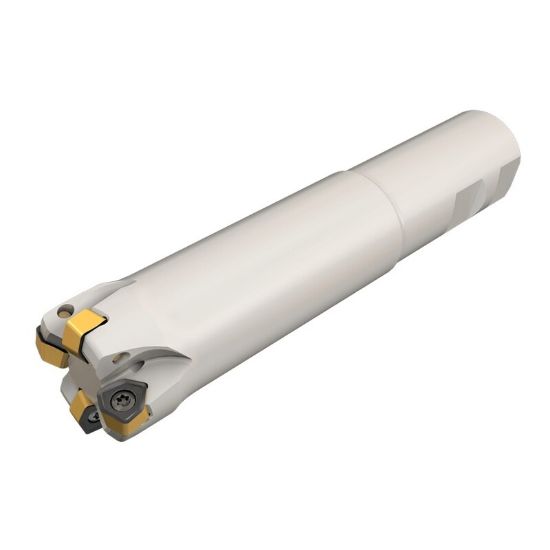

Picture of ISCAR FF EWXD0.75-3-2.5W0.75-04 Milling Cutter 0.750 Diameter Weldon 0.750 4.650 OAL 3 Flute

ISCAR FF EWXD0.75-3-2.5W0.75-04 Milling Cutter 0.750 Diameter Weldon 0.750 4.650 OAL 3 Flute

ANSI: FF EWXD0.75-3-2.5W0.75-04

ISO: FF EWXD0.75-3-2.5W0.75-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105631
Delivery date: 3-5 days
$371.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Insert Type Negative
Made In USA No
Shipping State Texas
Insert Application General Purpose
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 4.6500 118.11MM
Depth Of Cut Max 0.0300
Machine Side Connection Type Weldon
Insert Size Ic 4
Tool Material Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Cut Dia Min 0.4580 11.63MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Trigon
Insert Style H
Max Ramp Angle 5.00°
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006316
