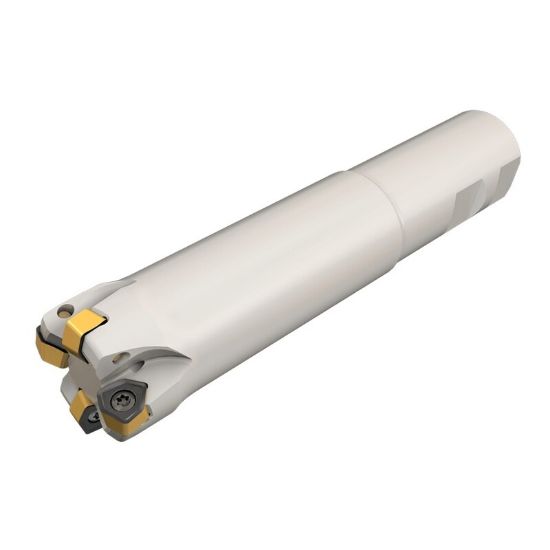

Picture of ISCAR FF EWXD0.62-2-3.0W0.75-04 Milling Cutter 0.625 Diameter Weldon 0.750 5.350 OAL 2 Flute

ISCAR FF EWXD0.62-2-3.0W0.75-04 Milling Cutter 0.625 Diameter Weldon 0.750 5.350 OAL 2 Flute

ANSI: FF EWXD0.62-2-3.0W0.75-04

ISO: FF EWXD0.62-2-3.0W0.75-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105629
Delivery date: 3-5 days
$372.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 5.3500 135.89MM
Machine Side Connection Type Weldon
Cutter Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.0300
Flutes/Inserts 2
Cut Dia Min 0.3330 8.46MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 4
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style H
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Trigon
Max Ramp Angle 5.00°
Fasteners & Connectors
Insert Screw 7006316
