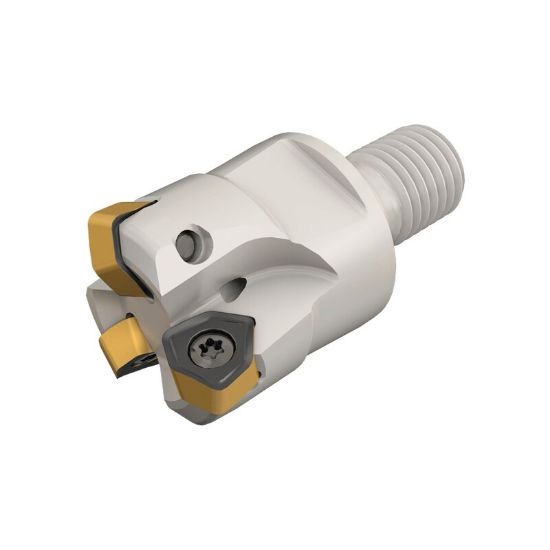

Picture of ISCAR FF EWX D32-4-M16-05 Milling Cutter 1.260 Diameter Screw On M16 2.362 OAL 4 Flute

ISCAR FF EWX D32-4-M16-05 Milling Cutter 1.260 Diameter Screw On M16 2.362 OAL 4 Flute

ANSI: FF EWX D32-4-M16-05

ISO: FF EWX D32-4-M16-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105525
Delivery date: 3-5 days
$446.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.2600 32.00MM
Cut Dia Min 0.8660 22.00MM
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Depth Of Cut Max 0.0390
Flutes/Inserts 4
Insert Size Ic 5
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Overall Len 2.3620 59.99MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Trigon
Insert Style H
Coolant Thru Yes
Max Ramp Angle 4.00°
Fasteners & Connectors
Insert Screw 7006042
