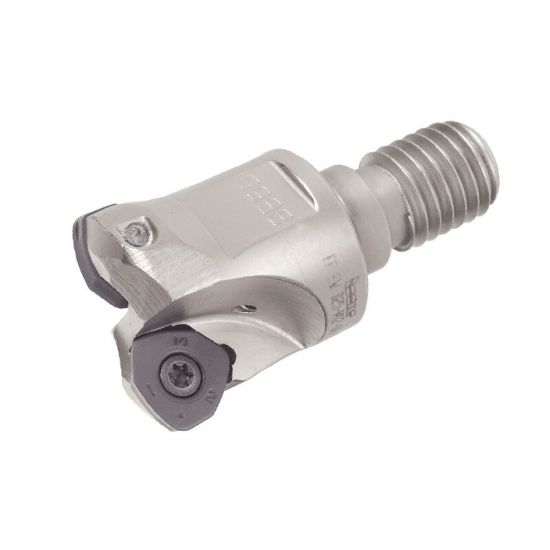

Picture of ISCAR FF EW D40-M16-06-C Milling Cutter 1.575 Diameter Screw On M16 2.559 OAL 4 Flute

ISCAR FF EW D40-M16-06-C Milling Cutter 1.575 Diameter Screw On M16 2.559 OAL 4 Flute

ANSI: FF EW D40-M16-06-C

ISO: FF EW D40-M16-06-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103614
Delivery date: 3-5 days
$484.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Cutter Dia 1.5750 40.01MM
Cut Dia Max 1.5750 40.01MM
Machine Side Connection Size M16
Tool Material Steel
Depth Of Cut Max 0.0510
Insert Size Ic 6
Cut Dia Min 1.0240 26.01MM
Overall Len 2.5590 65.00MM
Flutes/Inserts 4
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style FF
Max Ramp Angle 2.50°
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7003185
