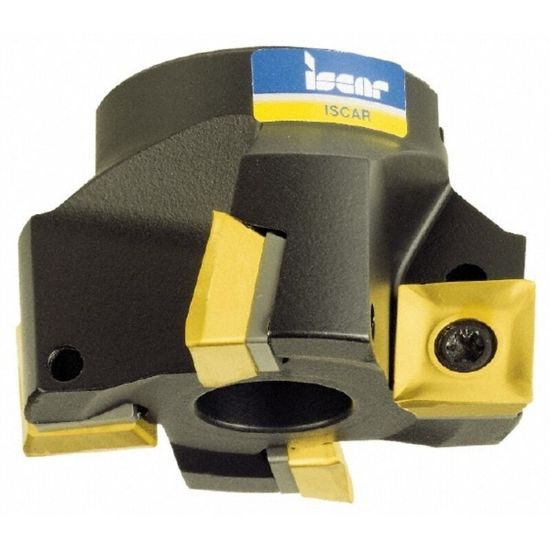

Picture of ISCAR F90SP D2.0-.75-CP10 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ISCAR F90SP D2.0-.75-CP10 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 4 Flute

ANSI: F90SP D2.0-.75-CP10

ISO: F90SP D2.0-.75-CP10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101116
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Feed Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.2050
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Insert Size Ic 10
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Insert Style SP
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000402
