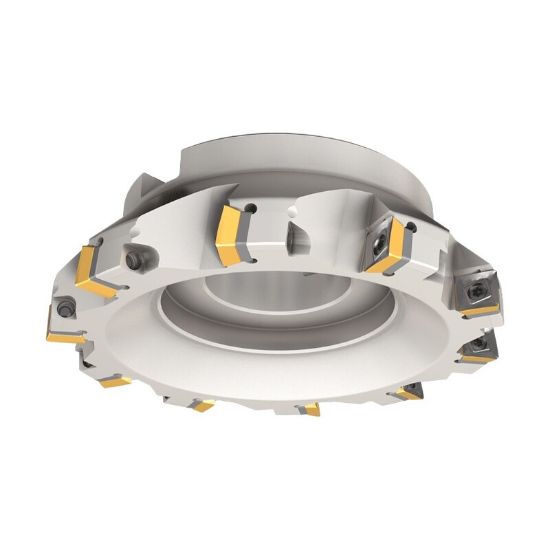

Picture of ISCAR F90SD D6.00-2.00-16 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.000 OAL 10 Flute

ISCAR F90SD D6.00-2.00-16 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.000 OAL 10 Flute

ANSI: F90SD D6.00-2.00-16

ISO: F90SD D6.00-2.00-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100494
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA No
Application Slot Milling, Face Milling, Side Milling
Insert/Tool Tool
Insert Type Positive
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Machine Side Connection Size 2.0000 50.80MM
Tool Material Steel
Cut Dia Max 6.0000 152.40MM
Flutes/Inserts 10
Depth Of Cut Max 0.1500
Cutter Dia 6.0000 152.40MM
Cut Dia Min 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Insert Style SD
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000402
