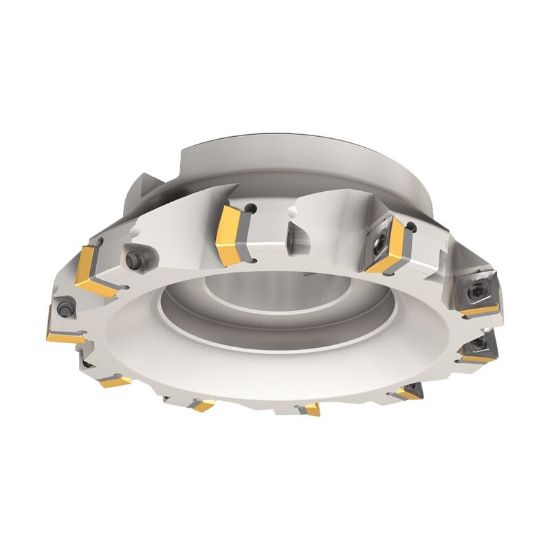

Picture of ISCAR F90SD D5.00-1.5-12 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.380 OAL 9 Flute

ISCAR F90SD D5.00-1.5-12 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.380 OAL 9 Flute

ANSI: F90SD D5.00-1.5-12

ISO: F90SD D5.00-1.5-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100493
Delivery date: 3-5 days
$1,296.00
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Side Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 5.0000 127.00MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.6020
Overall Len 2.3800 60.45MM
Flutes/Inserts 9
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Style SD
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000402
