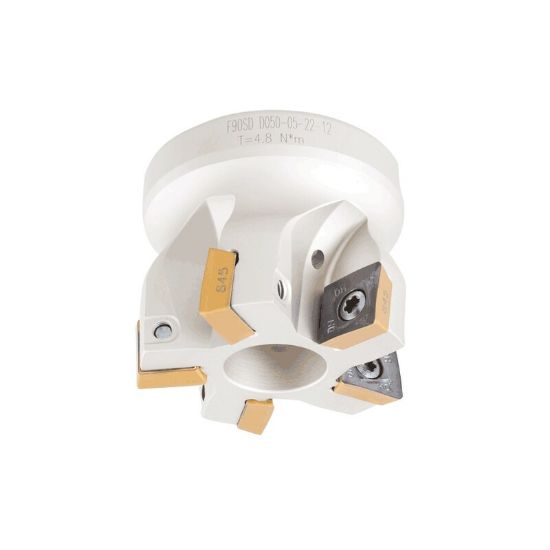

Picture of ISCAR F90SD D4.00-06-1.50-12 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ISCAR F90SD D4.00-06-1.50-12 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 6 Flute

ANSI: F90SD D4.00-06-1.50-12

ISO: F90SD D4.00-06-1.50-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3319833
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4650
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 12
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 6
Tool Material Steel
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Style SD
Fasteners & Connectors
Insert Screw 7006977
