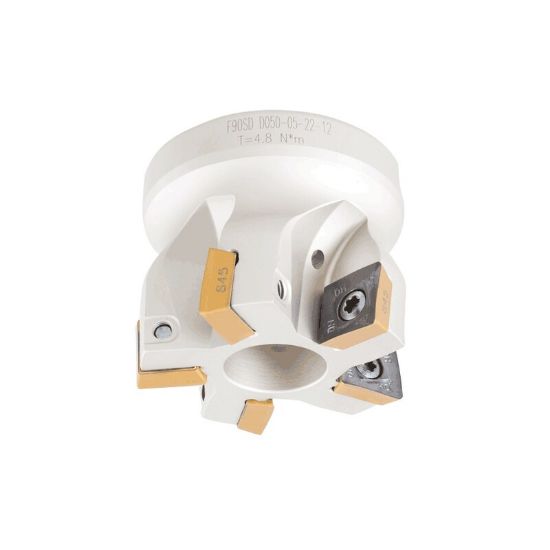

Picture of ISCAR F90SD D3.00-07-1.00-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ISCAR F90SD D3.00-07-1.00-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ANSI: F90SD D3.00-07-1.00-12

ISO: F90SD D3.00-07-1.00-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3319841
Delivery date: 3-5 days
$934.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Texas
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 7
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Overall Len 1.7500 44.45MM
Tool Material Steel
Insert Size Ic 12
Cut Dia Max 3.0000 76.20MM
Depth Of Cut Max 0.4650
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006977
