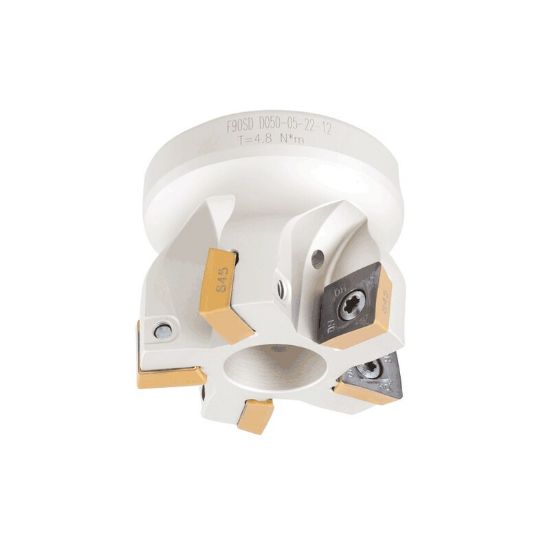

Picture of ISCAR F90SD D3.00-05-1.00-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ISCAR F90SD D3.00-05-1.00-12 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ANSI: F90SD D3.00-05-1.00-12

ISO: F90SD D3.00-05-1.00-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3319832
Delivery date: 3-5 days
$850.56

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Application Side Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Insert Size Ic 12
Tool Material Steel
Flutes/Inserts 5
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.4650
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style SD
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 7006977
