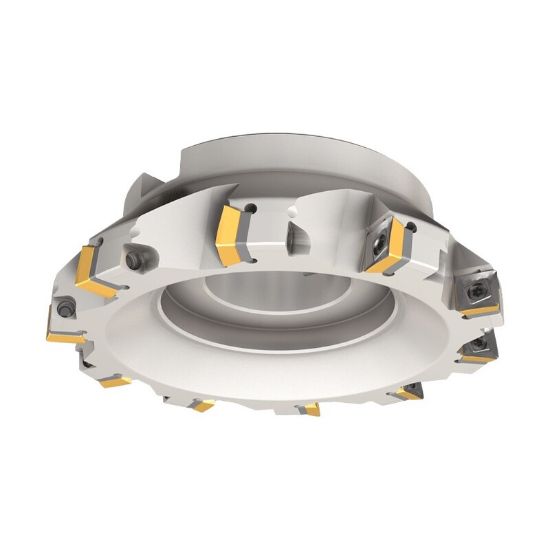

Picture of ISCAR F90SD D2.00-.75-12 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ISCAR F90SD D2.00-.75-12 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

ANSI: F90SD D2.00-.75-12

ISO: F90SD D2.00-.75-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100490
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.4650
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Insert Size Ic 12
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Cut Dia Max 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000402
