  • ISCAR F90LN D5.00-10-1.50-R-N11 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 10 Flute

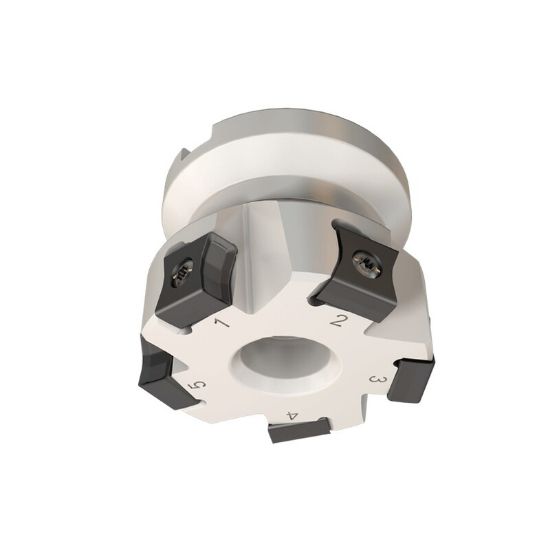

Picture of ISCAR F90LN D5.00-10-1.50-R-N11 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 10 Flute

ISCAR F90LN D5.00-10-1.50-R-N11 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 10 Flute

ANSI: F90LN D5.00-10-1.50-R-N11

ISO: F90LN D5.00-10-1.50-R-N11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103213
Delivery date: 3-5 days
$1,238.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Made In USA No
Insert Type Neutral
Insert Application Semi Finishing, Roughing
Package Size 1
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cut Dia Min 5.0000 127.00MM
Flutes/Inserts 10
Cut Dia Max 5.0000 127.00MM
Tool Material Steel
Insert Size Ic 11
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.3940
Cutting & Machining Properties
Insert Style LN
Coolant Thru No
Insert Shape/Cutter Pocket Shape Rectagonal
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002495
