  • ISCAR F90LN D3.00-09-1.00-L-N15 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 9 Flute

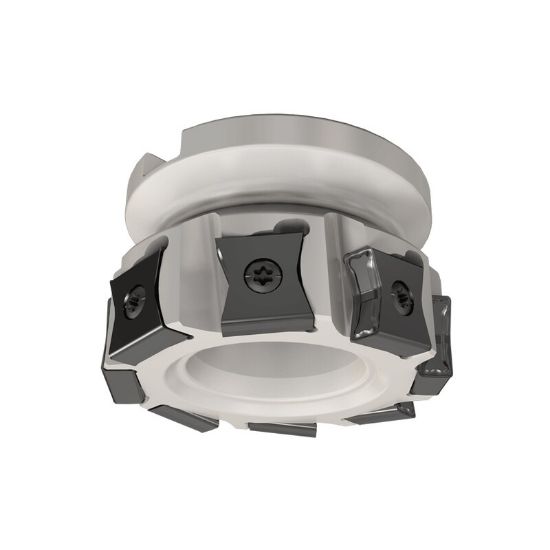

Picture of ISCAR F90LN D3.00-09-1.00-L-N15 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 9 Flute

ISCAR F90LN D3.00-09-1.00-L-N15 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.000 OAL 9 Flute

ANSI: F90LN D3.00-09-1.00-L-N15

ISO: F90LN D3.00-09-1.00-L-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102549
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Shipping State Texas
Made In USA No
Package Size 1
Insert/Tool Tool
Insert Type Neutral
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0000 76.20MM
Flutes/Inserts 9
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 15
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Depth Of Cut Max 0.5510
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru No
Cool Sply Type External
Insert Style LN
Fasteners & Connectors
Insert Screw 7002377
